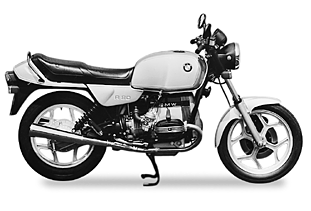

BMW R 80
Number sold 13.815
Price 10.440,- DM
| Engine | |
|
| |
| Type | four-stroke, two-cylinder, horizontally-opposed "Boxer" engine, air-cooled |
| Bore/stroke | 84,8 x 70,6 mm |
| Cubic capacity | 797,5 cm3 |
| Max power | 50 PS (37kW) at 6500 rpm |
| Max torque | 58,0 Nm at 4000 rpm |
| Compression ratio | 8,2 : 1 |
| Valves per cylinder | 2 |
| Valve control | ohv, using push rod and rocker arm |
| Carburation system | 2 constant depression carburettors Bing V 64/32/353 - 64/32/354 |
| Engine lubrication | wet sump |
|
| |
| Power transmission | |
|
| |
| Clutch | dry single plate, with lever-action diaphragm spring |
| Number of gears | 5 |
| Gear selection | dog-type gearbox (ratchet foot lever) |
| Gear ratios | 4,4 / 2,86 / 2,07 / 1,67 / 1,50 :1 |
| Rear wheel ratio | 1 : 3,20 |
| Bevel/crown wheel | 10 / 32 teeth |
|
| |
| Electrical system | |
|
| |
| Alternator | Bosch 280 W |
| Ignition | Contact-free electronic ignition (Bosch) |
| Starter | Bosch 0,7 kW |
| Spark plugs | W 7 DC / Beru 14 - 7 DU / Champion N 9 YC |
|
| |
| Suspension | |
|
| |
| Type of frame | double-loop tubular frame with bolt-on rear section |
| Front suspension | telescopic fork with hydraulic shock absorber |
| Rear suspension | BMW Monolever - swinging arm |
| Spring travel | 175 / 121 mm |
| Rims front | TH 2,50 x 18 E |
| Rims rear | MTH 2,50 x 18 E |
| Tyres front | 90/90 18 51 H |
| Tyres rear | 120/90 18 65 H |
| Brakes front | single disc brake Ø 285 mm |
| Brakes rear | Simplex drum brake Ø 200 mm |
|
| |
| Dimensions and weights | |
|
| |
| Length x width x height | 2175 x 800 x 1106 mm |
| Wheel base | 1447 mm |
| Ground clearance | 140 mm |
| Tank capacity | 22 l |
| Unladen weight, full tank | 210 kg |
| Max permissible weight | 440 kg |
| Fuel consumption | 4,6 l / 100 km (at constant 90 km/h) |
| Acceleration | 0 - 100 km/h 6,0 s |
| Top speed | 178 km/h |
|
| |
