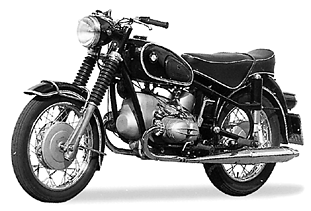

BMW R 69 US
Numbers produced contained in figures for R 69 S (11,317)
Price 1.648,- US Dollar
| Engine | |
|
| |
| internal designation | 268 / 3 |
| engine type | four-stroke two-cylinder flat-twin |
| Bore/stroke | 72 x 73 mm |
| Cubic capacity | 594 cm3 |
| Max power | 42 PS at 7000 U /min |
| Compression ratio | 9,5 : 1 |
| Valves per cylinder | ohv |
| Carburation system | 2 carburettor Bing 1/26/91 - 1/26/92 |
| Engine lubrication | forced-feed lubrication |
| oil pump | gear pump |
|
| |
| Power transmission | |
|
| |
| Clutch | single disc saucer spring, dry |
| Number of gears | 4 |
| shifting | foot shifting |
| Gear ratios | 4,17 / 2,73 / 1,94 / 1,54 |
| Rear wheel ratio | 1 : 3,375 |
| Bevel/crown wheel | 8 / 25 teeth |
|
| |
| Electrical system | |
|
| |
| Alternator | Bosch LJ/CGE 60/6/1700 R |
| Ignition | magneto ignition |
| Spark plugs | Bosch W 260 T 1 |
|
| |
| Suspension | |
|
| |
| designation | 245/3 |
| Type of frame | twin-loop steel tubular frame |
| Front suspension | telescopic fork |
| Rear suspension | long swinging arm with strut und oil-pressure shock absorbers |
| wheel rims | deep-bed 2,15B x 18 |
| Tyres front | 3,50 x 18 S |
| Tyres rear | 4,00 x 18 S |
| Brakes front | drum brake, Ø 200 mm Duplex full hub |
| Brakes rear | drum brake, Ø 200 mm Simplex full hub |
|
| |
| Dimensions and weights | |
|
| |
| Length x width x height | 2137 x 722 x 995 mm |
| Wheel base | 1427 mm |
| Tank capacity | 17 l |
| Unladen weight, full tank | 199 kg |
| permitted gross vehicle weight | 360 kg |
| Stand-/Fahrgeräusch | 78 / 84 dB(A) |
| Fuel consumption | ca. 5,3 l / 100 km |
| oil consumption | ca. 0,5 - 1 l / 1000 km |
| Top speed | 175 km/h |
|
| |
