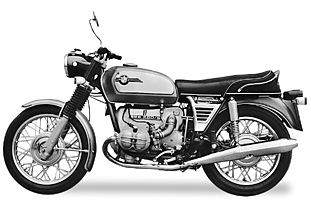

BMW R 60 / 5
Number sold 22.721
Price 3.996,- DM
| Engine | |
|
| |
| Type | four-stroke, two-cylinder, horizontally-opposed "Boxer" engine, air-cooled |
| Bore/stroke | 73,5 x 70,6 mm |
| Cubic capacity | 599 cm3 |
| Max power | 40 PS (29,5 kW) at 6400 rpm |
| Max torque | 49 Nm at 5000 rpm |
| Compression ratio | 9,2 : 1 |
| Valves per cylinder | 2 |
| Valve control | ohv, using push rod and rocker arm |
| Carburation system | 2 slide carburettors, Bing 1/26/111 -1/26/112 |
| Engine lubrication | wet sump |
|
| |
| Power transmission | |
|
| |
| Number of gears | 4 |
| shifting | dog-type gearbox (ratchet foot lever) |
| Gear ratios | 3,896 / 2,578 / 1,875 / 1,50 : 1 |
| Rear wheel ratio | 1 : 3,56 |
| Bevel/crown wheel | 11 / 37 teeth |
|
| |
| Electrical system | |
|
| |
| Alternator | Bosch 12 V / 180 W |
| Ignition | battery ignition |
| Starter | Bosch 0,5 PS |
| Spark plugs | Bosch W 230 T 30 / Beru 230/14/3 A / Champion N 7 Y |
|
| |
| Suspension | |
|
| |
| Type of frame | double-loop tubular frame with bolt-on rear section |
| Front suspension | telescopic fork with hydraulic shock absorber |
| Rear suspension | long swinging arm with strut |
| Spring travel | 208 / 125 mm |
| Rims front | 1,85 B 19 |
| Rims rear | 1,85 B 18 or 2,15 B 18 |
| Tyres front | 3,25 S 19 |
| Tyres rear | 4,00 S 18 |
| Brakes front | Duplex-drum brake Ø 200 mm |
| Brakes rear | Simplex drum brake Ø 200 mm |
|
| |
| Dimensions and weights | |
|
| |
| Length x width x height | 2100 x 850 x 1040 mm (from 1973: 2150 x 850 x 1040 mm) |
| Wheel base | 1385 mm (from 1973: 1435 mm) |
| Ground clearance | 165 mm ( at 75 kg load) |
| Tank capacity | 24 l (from 1971: 17 l) |
| Unladen weight, full tank | 210 kg (from 1971: 205 kg) |
| Max permissible weight | 398 kg |
| Fuel consumption | 4,8 l / 100 km (at constant 90 km/h) |
| Acceleration | 0 - 100 km/h 8,2 s |
| Top speed | 167 km/h |
|
| |
