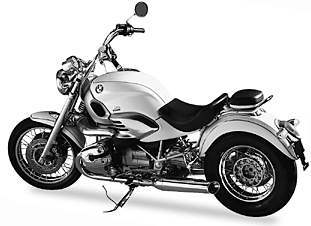

BMW R 1200 C
Number sold 8.158 (31.12.1997)
Price 23.400,- DM
| Engine | |
|
| |
| Type | four-stroke, two-cylinder, horizontally-opposed "Boxer" engine, air-cooled |
| Bore/stroke | 101 x 73 mm |
| Cubic capacity | 1170 cm3 |
| Max power | 61 PS (45 kW) at 5000 rpm |
| Max torque | 98 Nm at 3000 rpm |
| Compression ratio | 10,0 : 1 |
| Valves per cylinder | 4 |
| Valve control | ohv, using chain drive, cup tappets, push rod and rocker arm |
| Carburation system | electronic injection, Bosch Motronic MA 2.4 |
| Engine lubrication | wet sump |
|
| |
| Power transmission | |
|
| |
| Clutch | dry single plate, with lever-action diaphragm spring |
| Number of gears | 5 |
| Gear selection | dog-type gearbox (ratchet foot lever) |
| Gear ratios | 2,05 / 1,60 / 1,27 / 1,04 / 0,80 :1 |
| Rear wheel ratio | 1 : 2,54 |
| Bevel/crown wheel | 11 : 28 teeth |
|
| |
| Electrical system | |
|
| |
| Alternator | 12 V / 700 W |
| Ignition | electronic ignition Bosch Motronic MA 2.4 |
| Starter | 1,1 kW |
| Spark plugs | Bosch FR6 DDC |
|
| |
| Suspension | |
|
| |
| Type of frame | 3-part tubular space frame, engine serving as load-bearing component, cast-aluminium front section, rear section of tubular steel |
| Front suspension | BMW Telelever - fork with longitudinal control arm and central strut |
| Rear suspension | BMW Paralever - swinging arm |
| Spring travel | 144 / 100 mm |
| Rims front | 2,50 x 18 MT H 2 |
| Rims rear | 4,00 x 15 MT H 2 |
| Tyres front | 100/90 - 18 56H |
| Tyres rear | 170/80 - B15 83H |
| Brakes front | dual-disc brake Ø 305 mm |
| Brakes rear | single disc brake Ø 285 mm |
|
| |
| Dimensions and weights | |
|
| |
| Length x width x height | 2340 x 1050 x 1130 mm |
| Wheel base | 1650 mm |
| Ground clearance | 150 mm |
| Tank capacity | 17 l |
| Unladen weight, full tank | 256 kg |
| Max permissible weight | 450 kg |
| Fuel consumption | 4,8 l / 100 km (at constant 90 km/h) |
| Acceleration | 0 - 100 km/h 5,8 s |
| Top speed | 168 km/h |
|
| |
