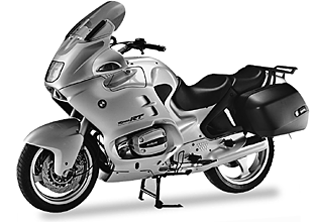

BMW R 1100 RT
Number sold 24.702 (31.12.1997)
Price 24.500,- DM
| Engine | |
|
| |
| Type | four-stroke, two-cylinder, horizontally-opposed "Boxer" engine, air-cooled |
| Bore/stroke | 99 x 70,5 mm |
| Cubic capacity | 1085 cm3 |
| Max power | 90 PS (66 kW) at 7250 rpm |
| Max torque | 95 Nm at 5500 rpm |
| Compression ratio | 10,7 : 1 |
| Valves per cylinder | 4 |
| Valve control | ohv, using chain drive, cup tappets, push rod and rocker arm |
| Carburation system | electronic injection, Bosch Motronic MA 2.2 |
| Engine lubrication | wet sump |
|
| |
| Power transmission | |
|
| |
| Clutch | dry single plate, with lever-action diaphragm spring |
| Number of gears | 5 |
| Gear selection | dog-type gearbox (ratchet foot lever) |
| Gear ratios | 4,16 / 2,91 / 2,13 / 1,74 / 1,45 :1 |
| Rear wheel ratio | 1 : 2,91 |
| Bevel/crown wheel | 11 : 32 teeth |
|
| |
| Electrical system | |
|
| |
| Alternator | 12 V / 700 W |
| Ignition | electronic ignition Bosch Motronic MA 2.2 |
| Starter | 1,1 kW |
| Spark plugs | Bosch FR6 DDC |
|
| |
| Suspension | |
|
| |
| Type of frame | 3-part tubular space frame, engine serving as load-bearing component |
| Front suspension | BMW Telelever - fork with longitudinal control arm and central strut |
| Rear suspension | BMW Paralever - swinging arm |
| Spring travel | 120 / 135 mm |
| Rims front | 3,50 x 17 |
| Rims rear | 4,50 x 18 |
| Tyres front | 120/70 - ZR 17 |
| Tyres rear | 160/60 - ZR 18 |
| Brakes front | dual-disc brake Ø 305 mm |
| Brakes rear | single disc brake Ø 276 mm |
|
| |
| Dimensions and weights | |
|
| |
| Length x width x height | 2205 x 900 x 1380 mm |
| Wheel base | 1485 mm |
| Ground clearance | 153 mm |
| Tank capacity | 26 l |
| Unladen weight, full tank | 282 kg |
| Max permissible weight | 490 kg |
| Fuel consumption | 4,7 l / 100 km (at constant 90 km/h) |
| Acceleration | 0 - 100 km/h 4,3 s |
| Top speed | 196 km/h |
|
| |
